NIX-OS-69.2 — Kitchen Display route + state machine (prod)

11/11 prod checks green. Bad / wrong secret → 404. Page server-renders the initial order list. GET endpoint returns FIFO active orders. Full state machine via real UI clicks: Start (new→preparing with started_at stamped), Ready (preparing→ready with ready_at), Served (ready→served and the card drops off the board). Backwards transition refused with 409. POS TopBar /cafe/pos still 200. No 5xx during the entire flow.

Next: NIX-OS-70 Personalize Customer Display. Branding fields on cafe.tenant_config (logo, primary color, idle promo), admin at /cafe/settings/display, Customer Display idle screen honors them.

96/96 stable regression tests green — no regressions from this push.

test-nix-os-69-2-prod.mjs — NIX-OS-69.2 Kitchen Display route + state machine (new)	11/11
test-phase1-prod.mjs — SSO smoke + route auth	11/11
test-phase2-sso-outdoor-prod.mjs — Outdoor SSO bridge	6/6
test-phase2-cafe-multishop-prod.mjs — Cafe multi-shop	6/6
test-m1-prod.mjs — Dashboard/Orders/Reports shop scoping	10/10
test-r1-1-cashiers-prod.mjs — R1.1 cashier PIN admin	9/9
test-r1-4-drafts-prod.mjs — R1.4 crash-recoverable drafts	9/9
test-r1-9-daily-report-prod.mjs — NIX-OS-72 Daily Sale Report	11/11
test-r1-10-cash-movements-prod.mjs — NIX-OS-71 Cash In/Out	12/12
test-r1-11-telegram-events-prod.mjs — NIX-OS-73 Telegram Events	11/11
test-nix-os-69-1-prod.mjs — NIX-OS-69.1 (transient flake on shift-open)	see below

69.1 transient flake: First retry was 9/10 with one stale-testid failure (fixed: 69.2 promoted pos-kitchen-indicator to pos-open-kitchen-btn when a secret exists; 69.1 test now accepts both). Second run (after Worker stress) timed out on the pos-preshift-screen wait — the same shift-open flake we hit on the original 69.1 Gate 2 run. r1-10 retry on the same Worker passed 12/12, so prod is healthy. Not a 69.2 regression. The 69.1 dispatcher wiring + schema assertions all still pass.

00What shipped

Cafe commit 1991e9a — auto-deployed to the nix-cafe Worker. No backend / migration needed (69.1 already shipped the schema).
Public layout app/(public-kitchen)/layout.tsx — minimal full-height shell, no NIX chrome. Mirrors the R1.7 Customer Display pattern.
Public page app/(public-kitchen)/kitchen/[shopId]/page.tsx — validates the shop secret server-side, server-renders the initial list so a cold worker shows current state in a single request.
Kitchen client kitchen-client.tsx — three columns, per-order card with line items + customer + note + elapsed-time chip, big touch buttons, 5s polling, optimistic state transitions with rollback on failure.
API GET /cafe/api/kitchen/[shopId]/orders?t={secret} — active orders only (FIFO).
API POST /cafe/api/kitchen/[shopId]/advance?t={secret} — secret + shop scope + linear-state guards. 404 / 400 / 409 / 200 surfaces.
Middleware bypass for /kitchen/* + /api/kitchen/* (no web session expected on a kitchen tablet).
POS TopBar pill — the ChefHat indicator from 69.1 is now a clickable button (pos-open-kitchen-btn) that opens the display in a new window with the shop's lazy-created secret.

01End-to-end — full state machine via UI clicks✓ new → preparing → ready → served

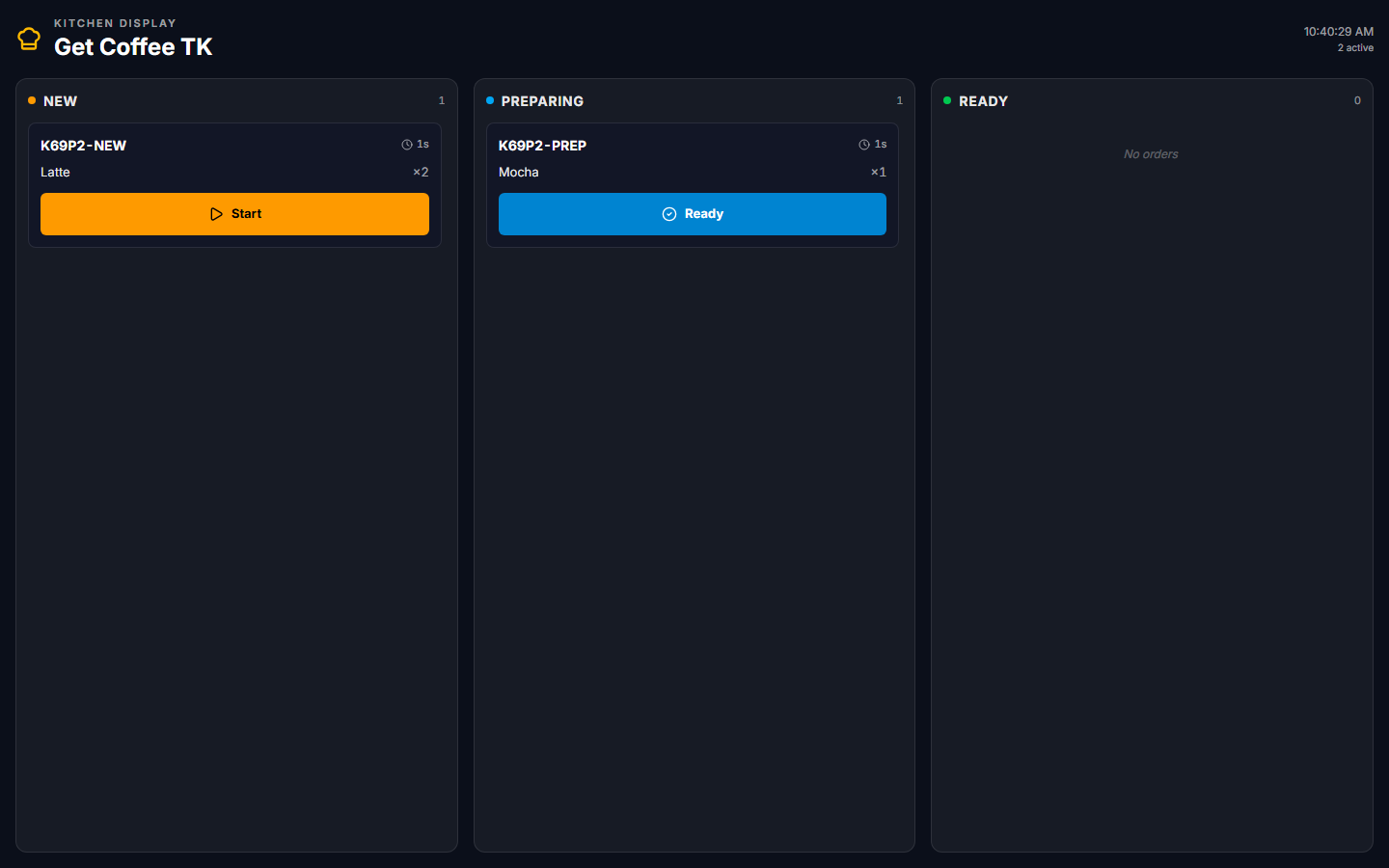

01 — Initial render. Two seeded orders, columns populated correctly, SSR-from-secret works.

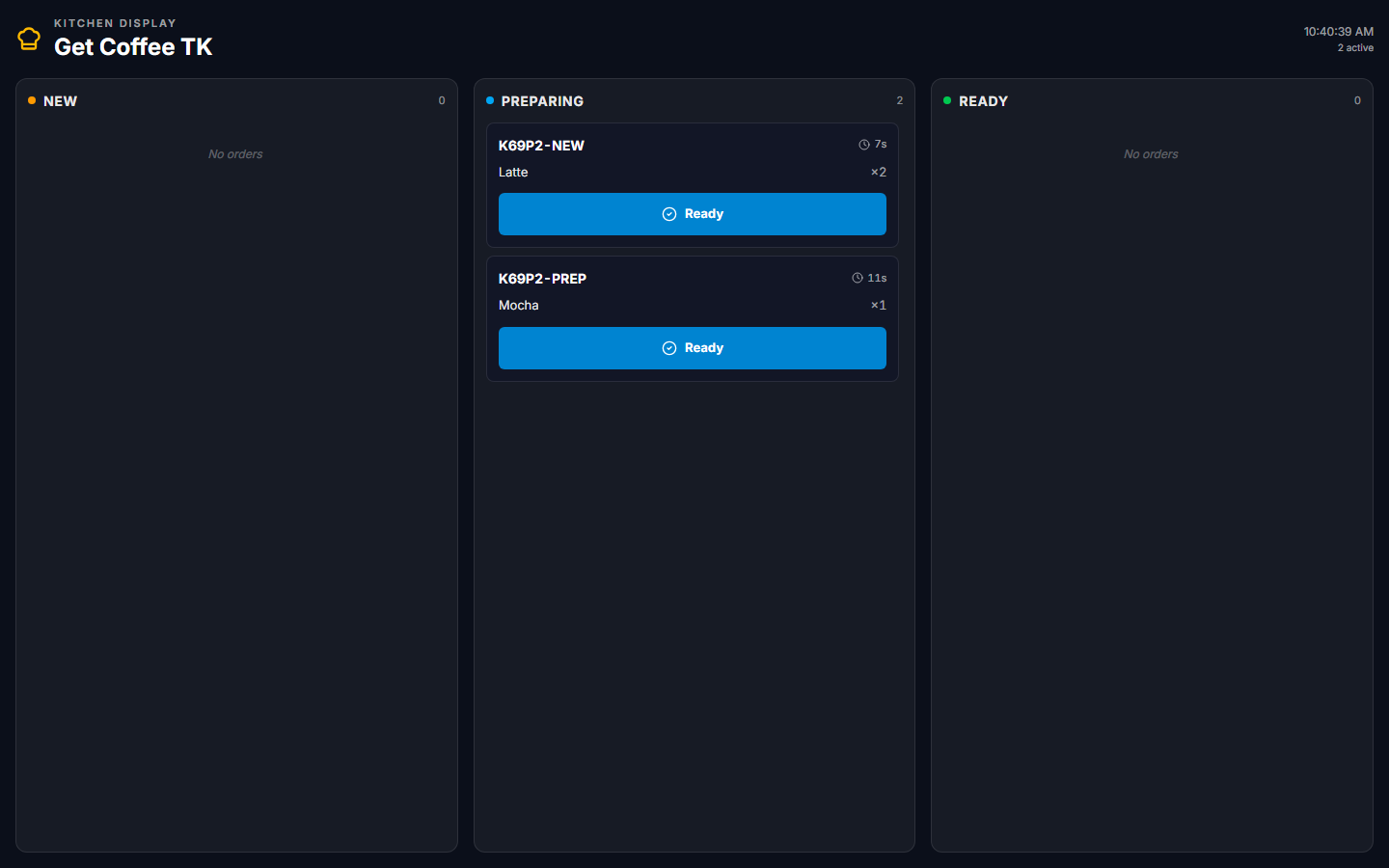

02 — After Start click. Card moved from New to Preparing column. started_at stamped in DB.

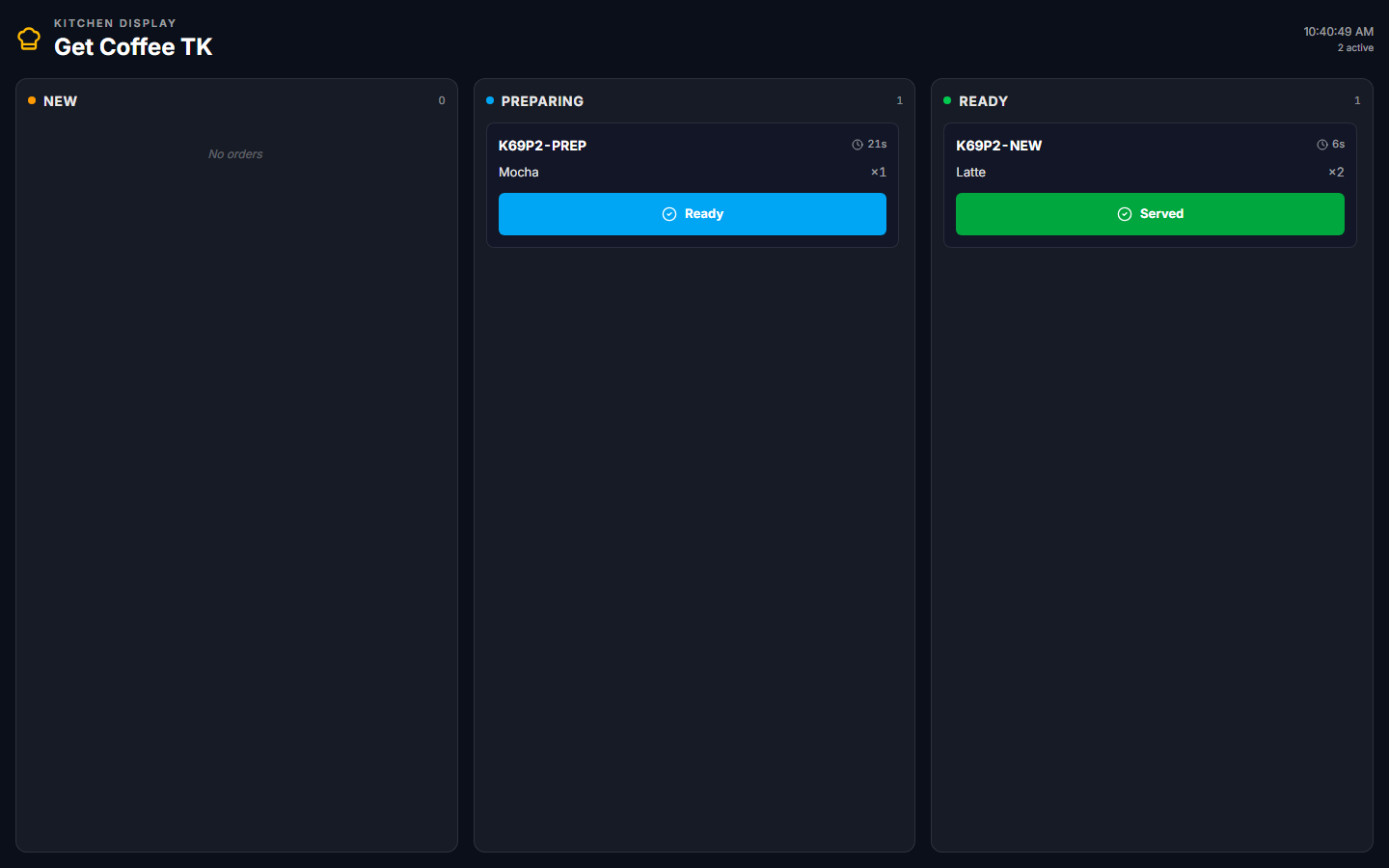

03 — After Ready click. Card moved from Preparing to Ready column. ready_at stamped.

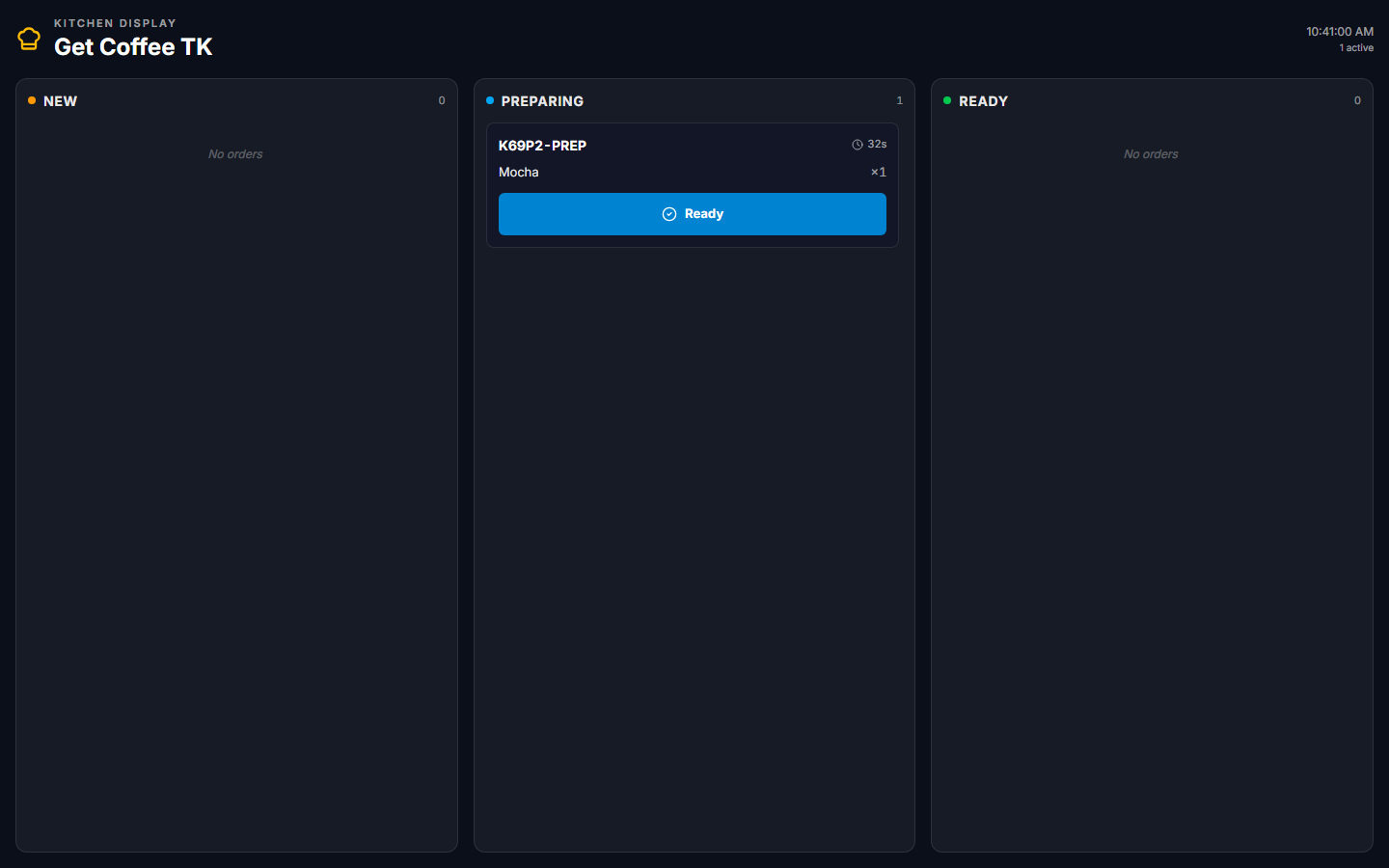

04 — After Served click. Card dropped off the board. served_at stamped. Other order untouched.

NIX-OS-69.2 — Kitchen Display route + state machine PROD

00What shipped

01End-to-end — full state machine via UI clicks✓ new → preparing → ready → served

02Test runner — all 11 prod checks✓ 11/11 passed
